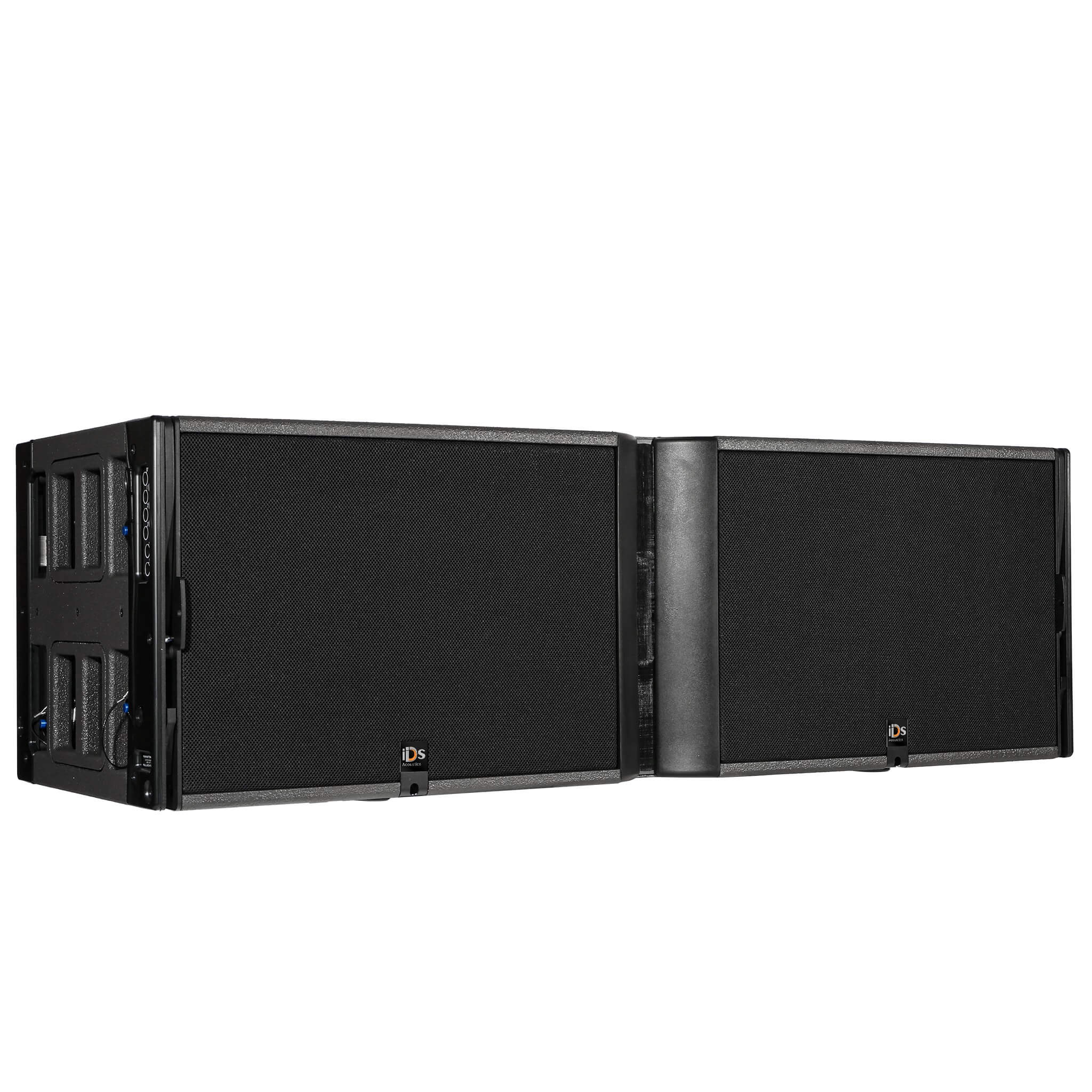

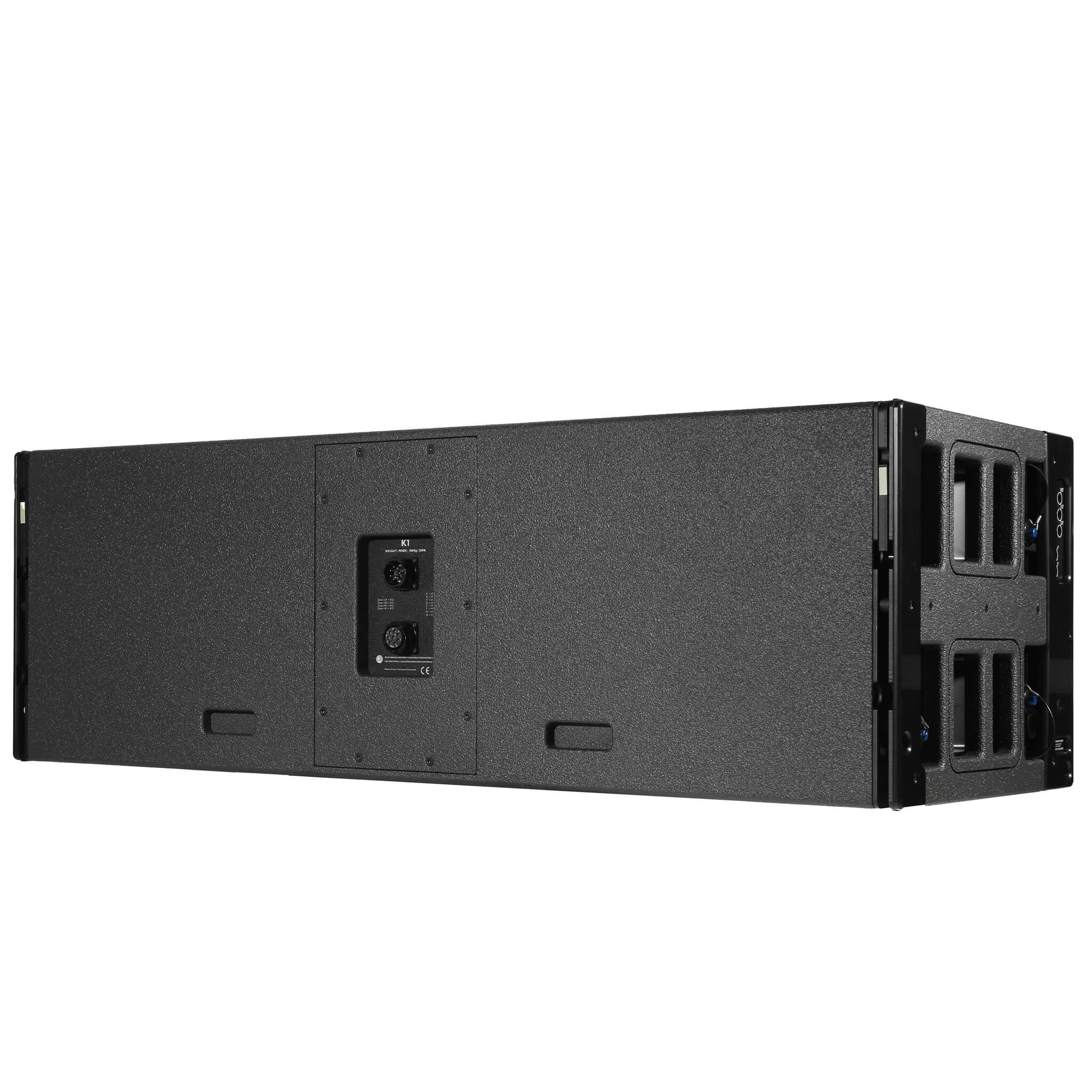

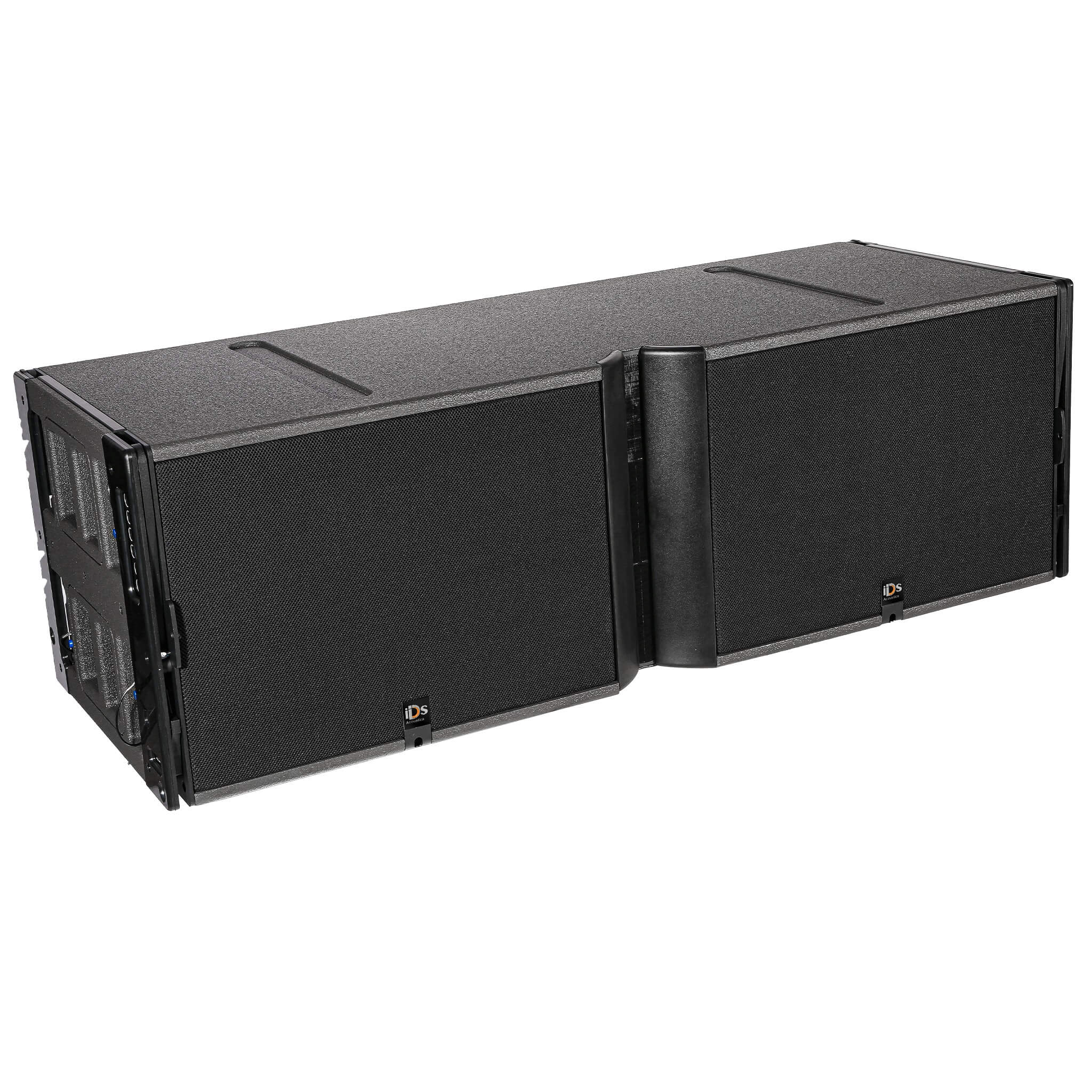

K1 The industry benchmark 3-way active, dual 15"
Max SPL 149 dB
Bandwidth 35 Hz- 20 KHz
Transducers LF : 2 x 15"
MF : 4 x 6.5"
HF : 3 x 3"
Weight 106 kg / 234 lb
Directivity H: 90°
V: 5°
Parameter Specifications
If You Need More Information About The Product, Please Contact Us.
You Can Contact Us Via Whatsapp.35 Hz - 20 kHz ([K1])
149 dB ([K1])
Horizontal: 90° symmetric
vertical: dependent upon the number of elements andthe line source curvature
LF: 2 x 15" neodymium
MF: 4 x 6.5" neodymium, direct-radiating
HF: 3x 3" diaphragm compression drivers
LF: bass-reflex
MF: bass-reflex
HF: DOSC waveguide
LF:2x8 Ω
MF: 8 Ω
HF: 8 Ω
2 x 8-point PA-COM

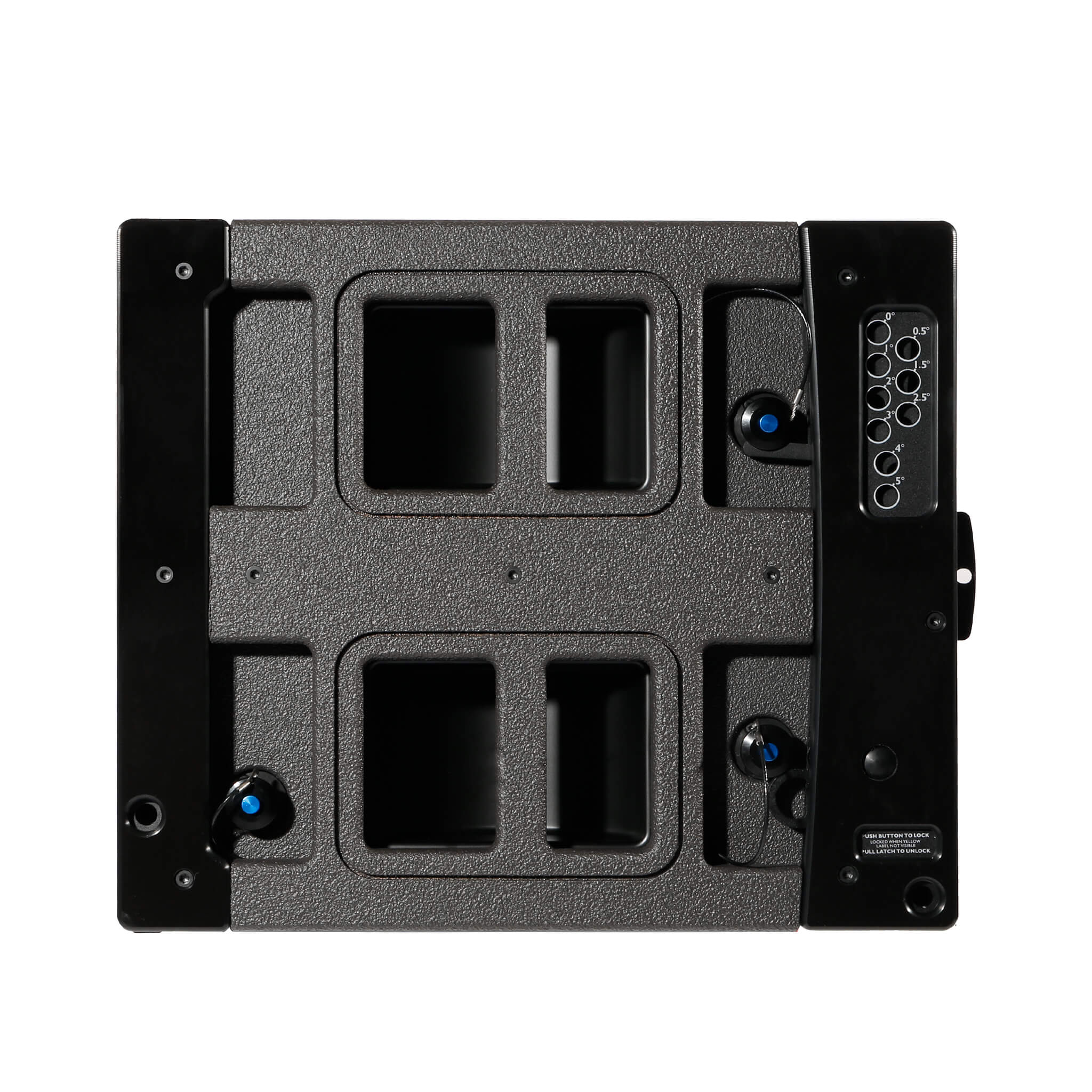

4 handles integrated into the cabinetinter-enclosure angles: 0°0.5°,1°.1.5°,2°.2.5°.3°.4°or 5°
1342 mm (52.8 in)/ 438 mm (17.2 in)/ 520 mm (20.5 in)
106 kg / 234 lb
Premium grade Baltic birch plywoodhigh density polyethylene
Coated steel grillacoustically neutral 3D fabric
High grade steel with anti-corrosion coating
Grey brown RAL8019
IP43
