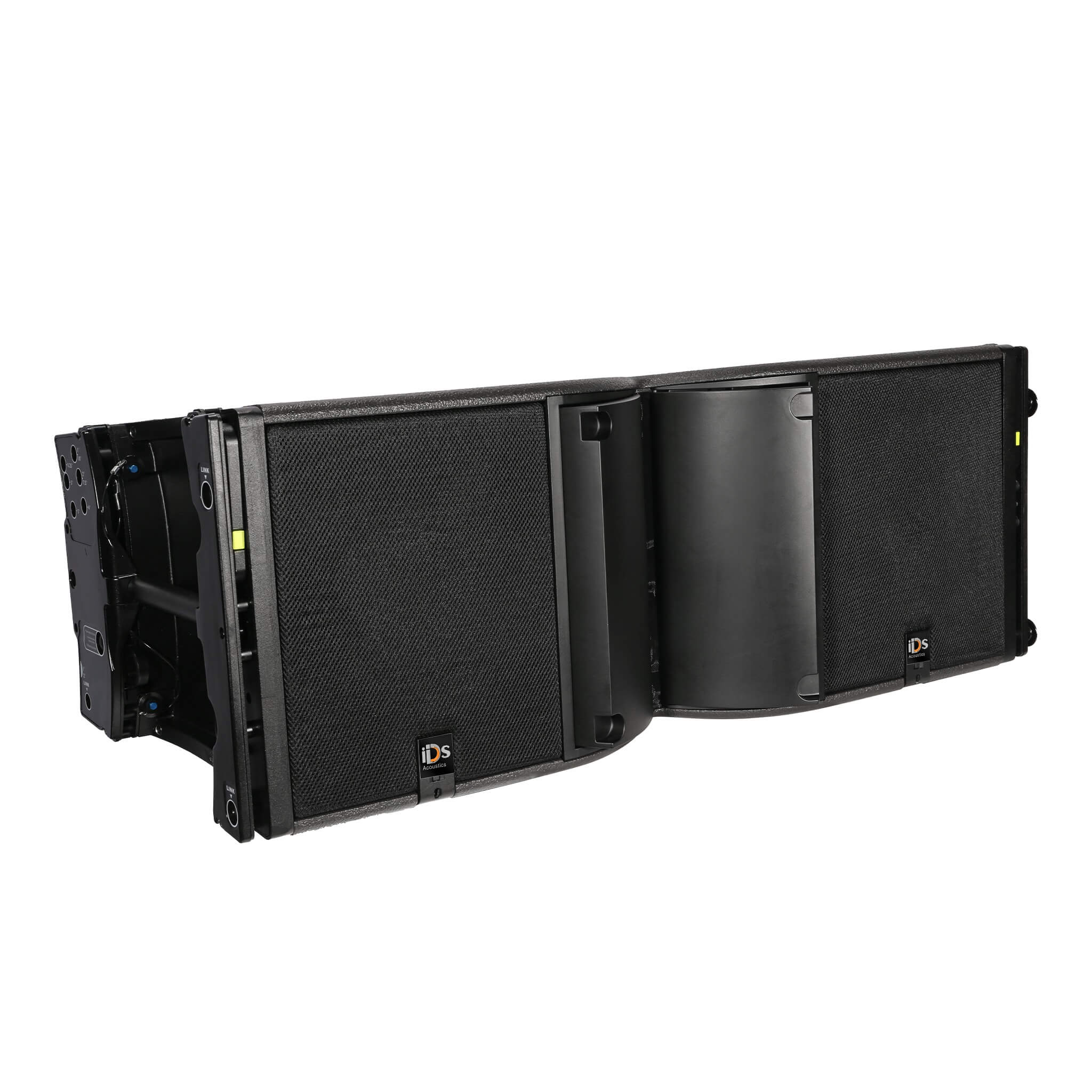

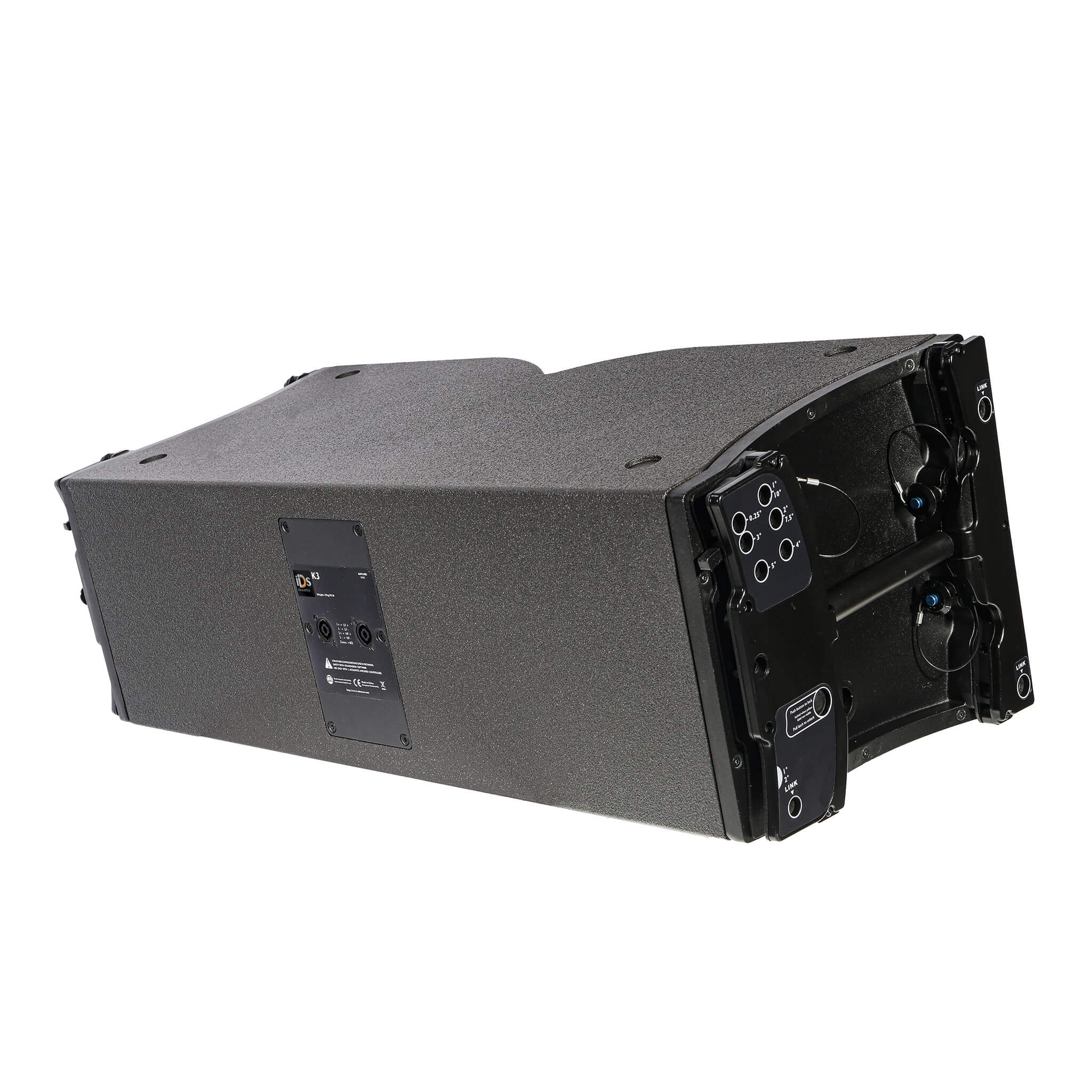

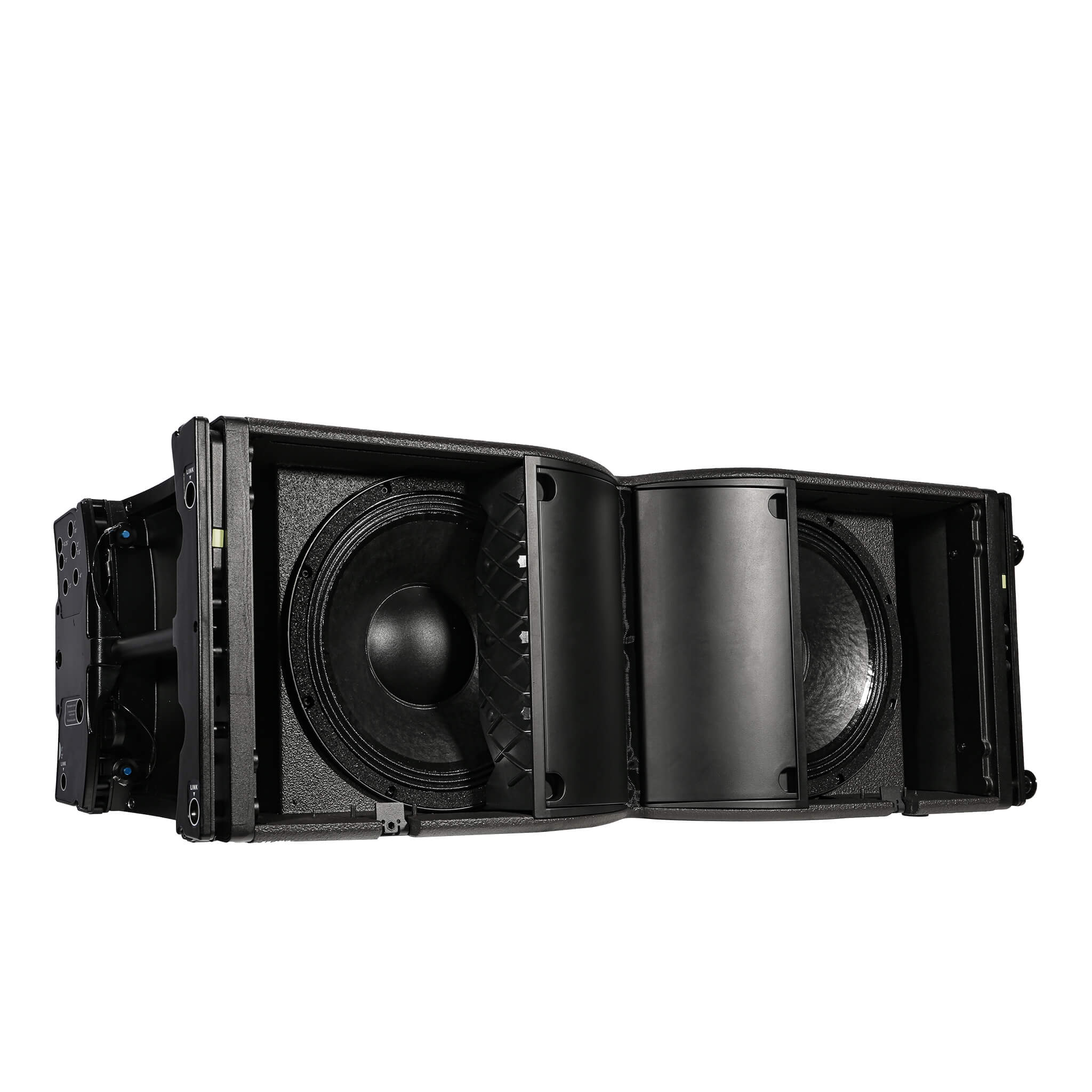

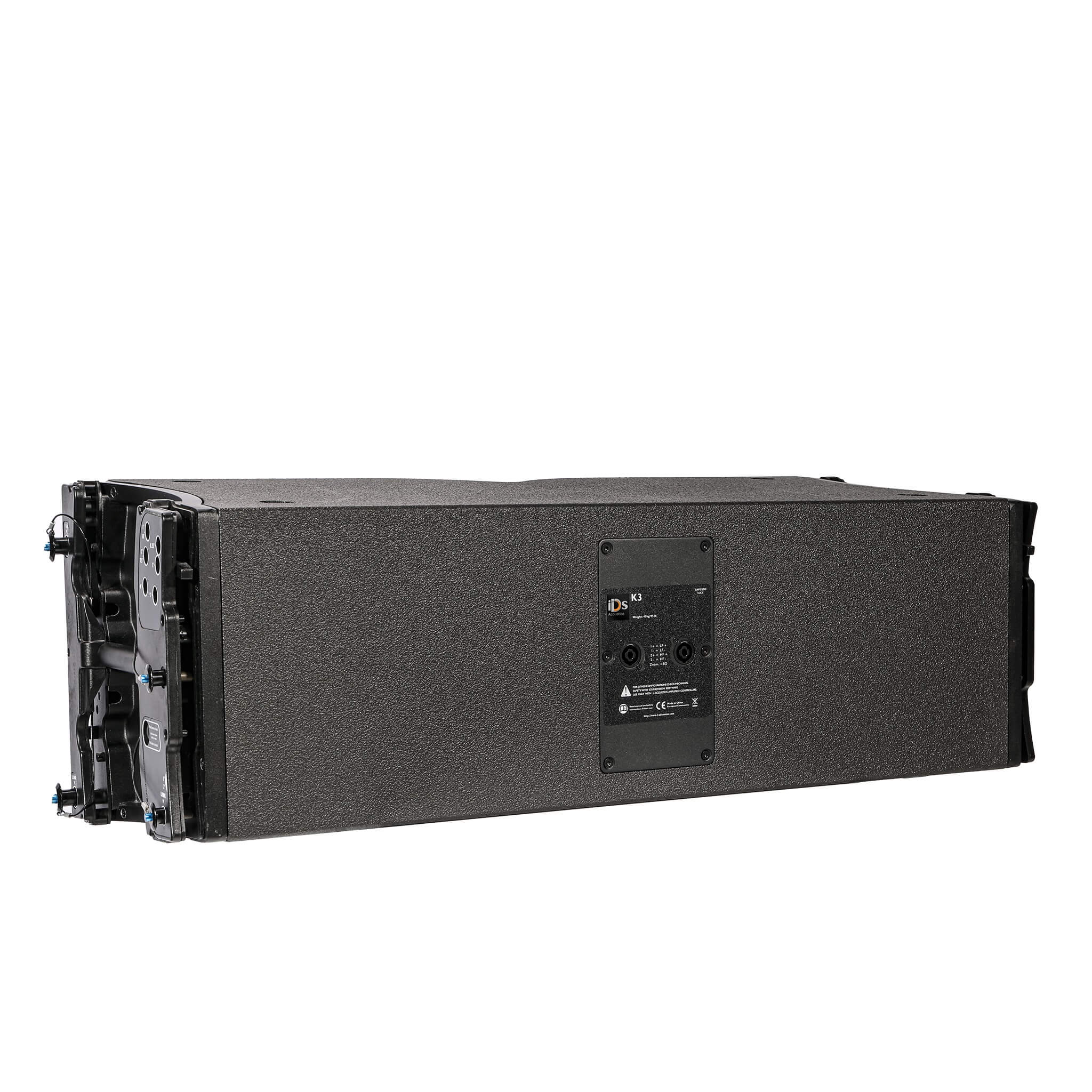

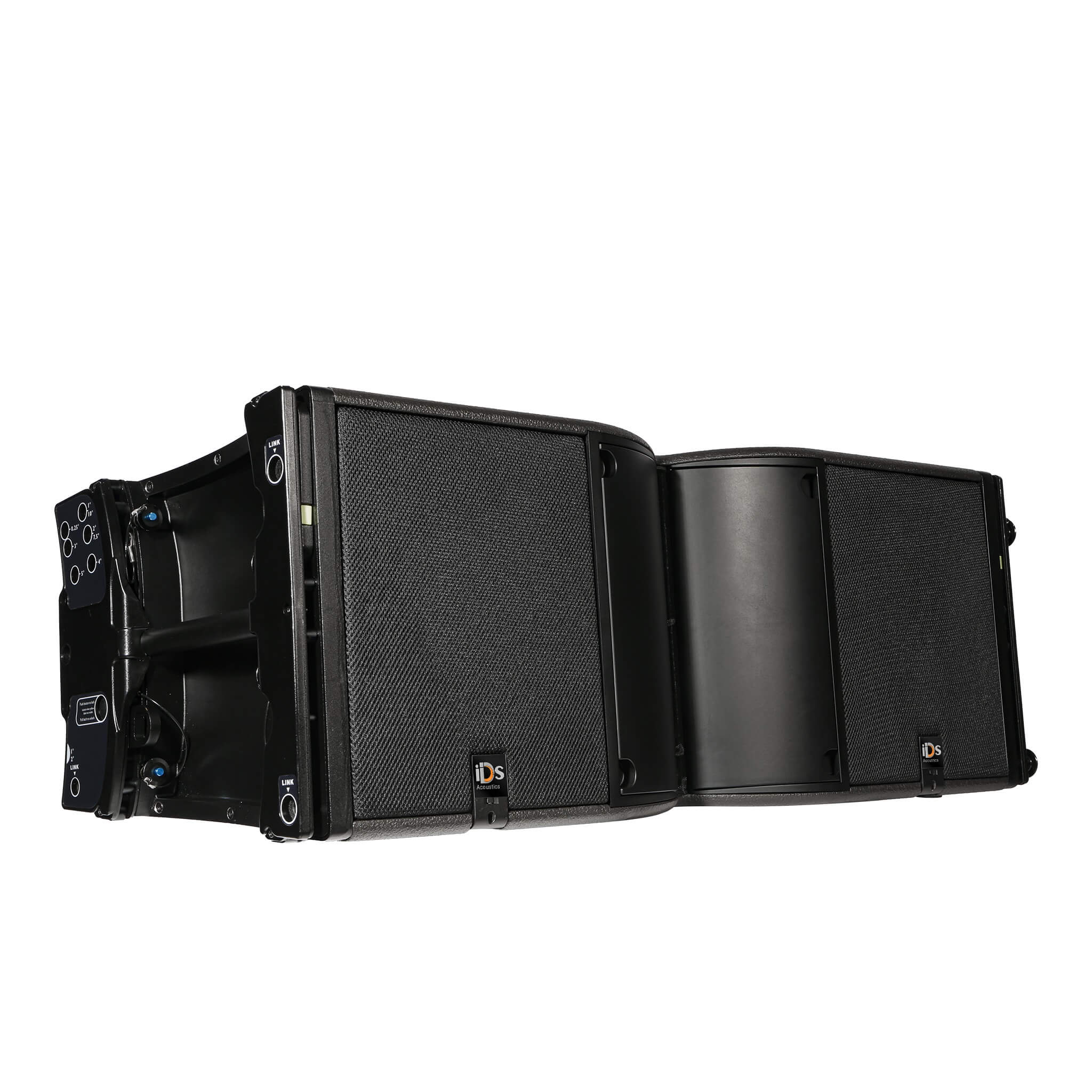

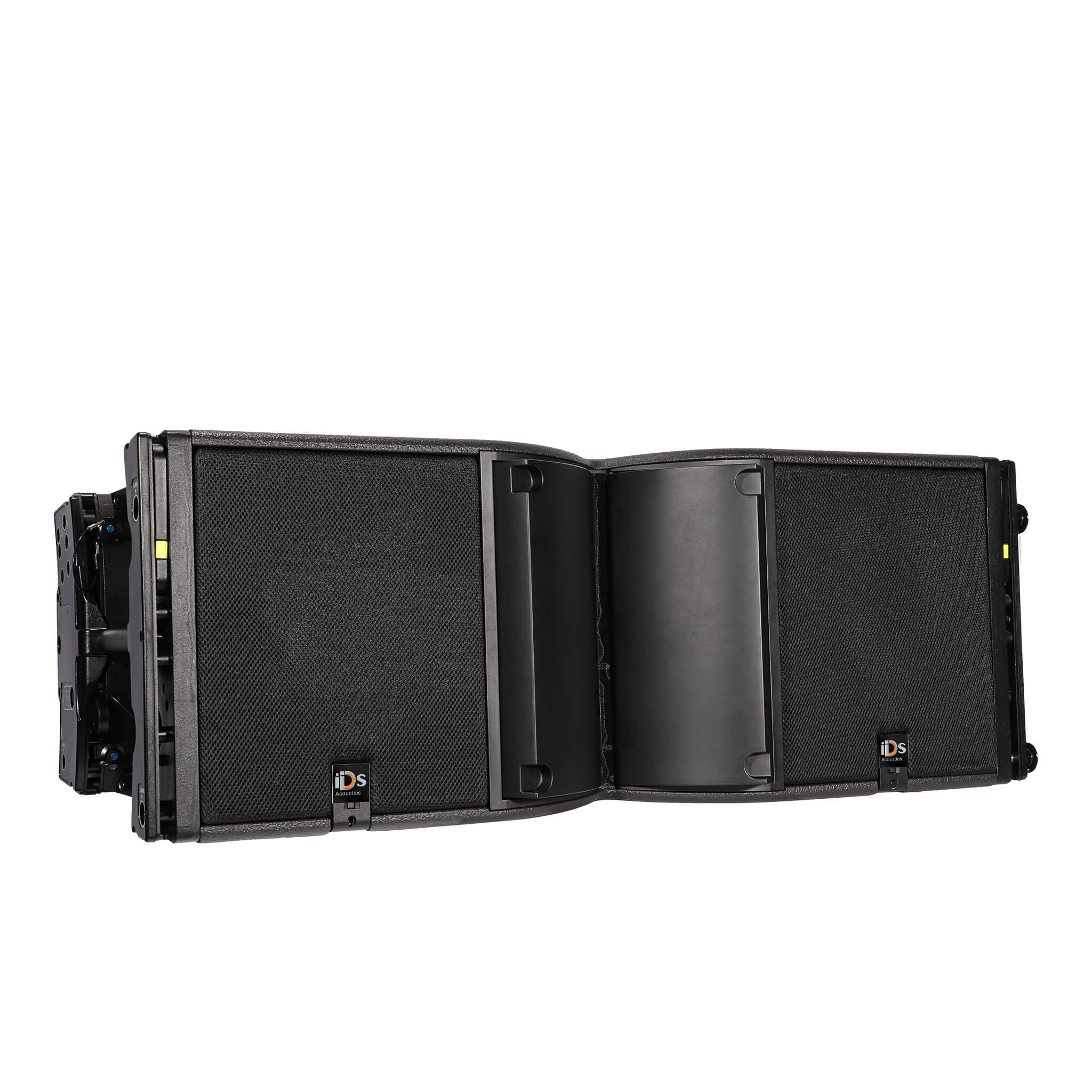

K3 Full-range. Compact. No compromises. 2-way active, dual 12"
Max SPL 143 dB
Bandwidth 42 Hz- 20 KHz
Transducers LF: 2 × 12’’
HF: 1 × 4’’
Weight 43 kg / 95 lb
Directivity H: 70° / 90° / 110°
V: 10°
Parameter Specifications
If You Need More Information About The Product, Please Contact Us.
You Can Contact Us Via Whatsapp.42 Hz- 20 kHz ([K3 70])
143 dB ([K3 70])
Horizontal: 70°/110°symmetric or 90° asymmetric
vertical: depending on number of elements and arraycurvature
LF: 2 x 12"neodymium cone driver
HF: 1x 4" diaphragm compression driver, neodymium
LF: bass-reflex, L-Vents
HF: DOSC waveguide, Panflex
LF:8 Ω
HF:8 Ω
2 x 4-point speakON
Flush-fitting 4-point rigging system2 handles
inter-enclosure angles: 0.25°,1, 2°, 3°, 4°, 5°,7.5° or10”
950 mm (37.4 in)/ 357 mm (14 in) / 403 mm (15.9 in)
43 kg / 95 lb
Premium grade Baltic birch plywood
Coated steel grill
acoustically neutral 3D fabric
High grade steel with anti-corrosion coating
Dark grey brown Pantone 426 C
IP55
