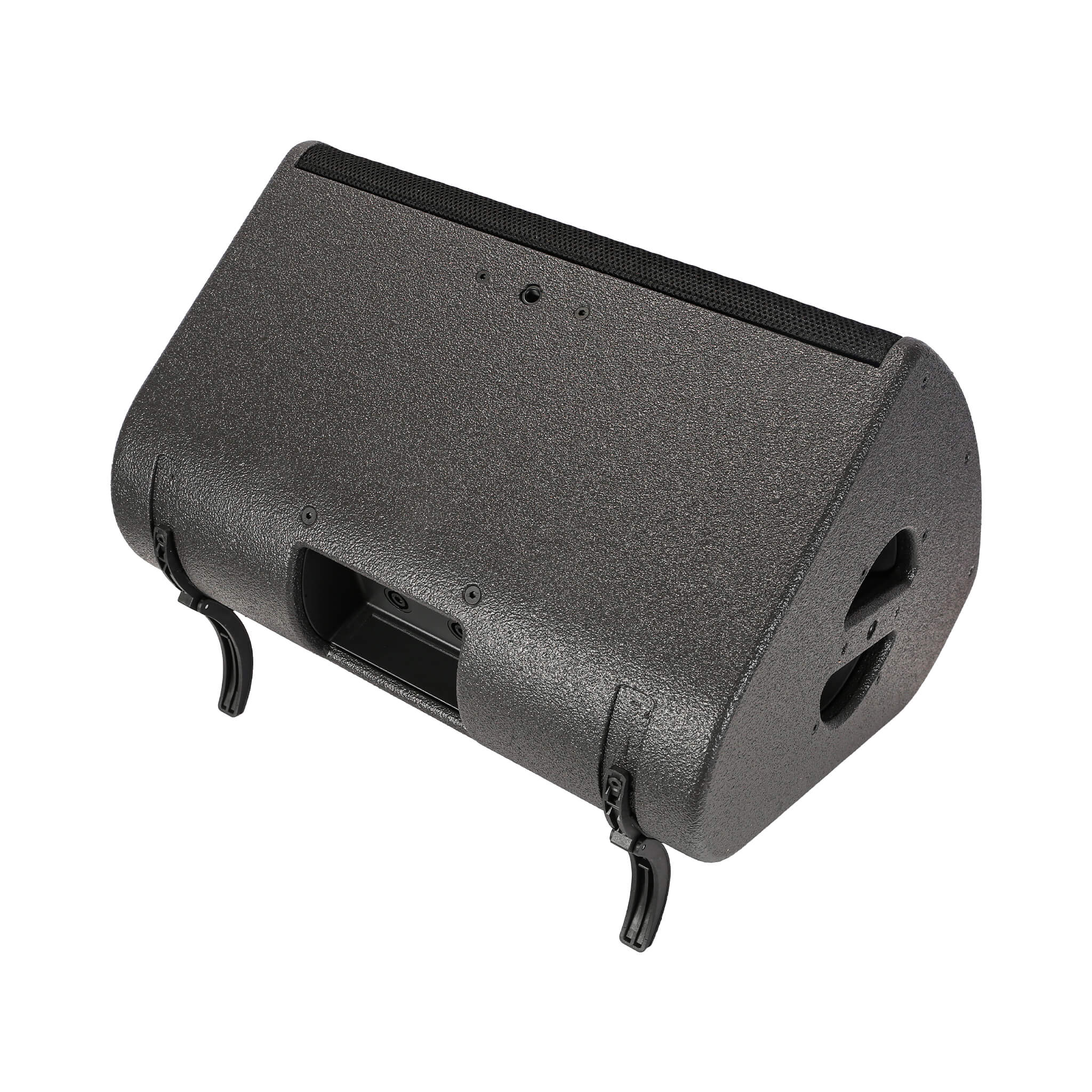

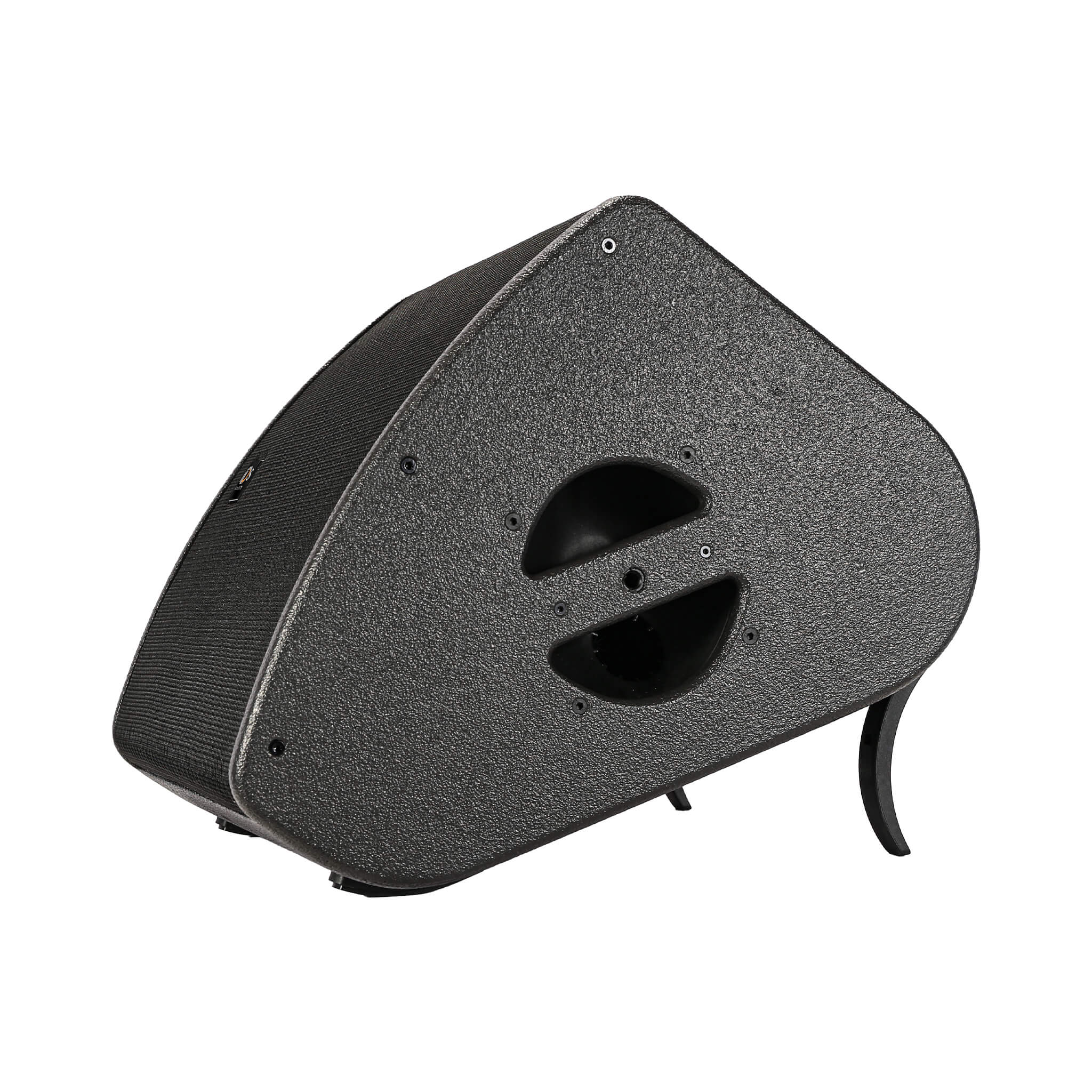

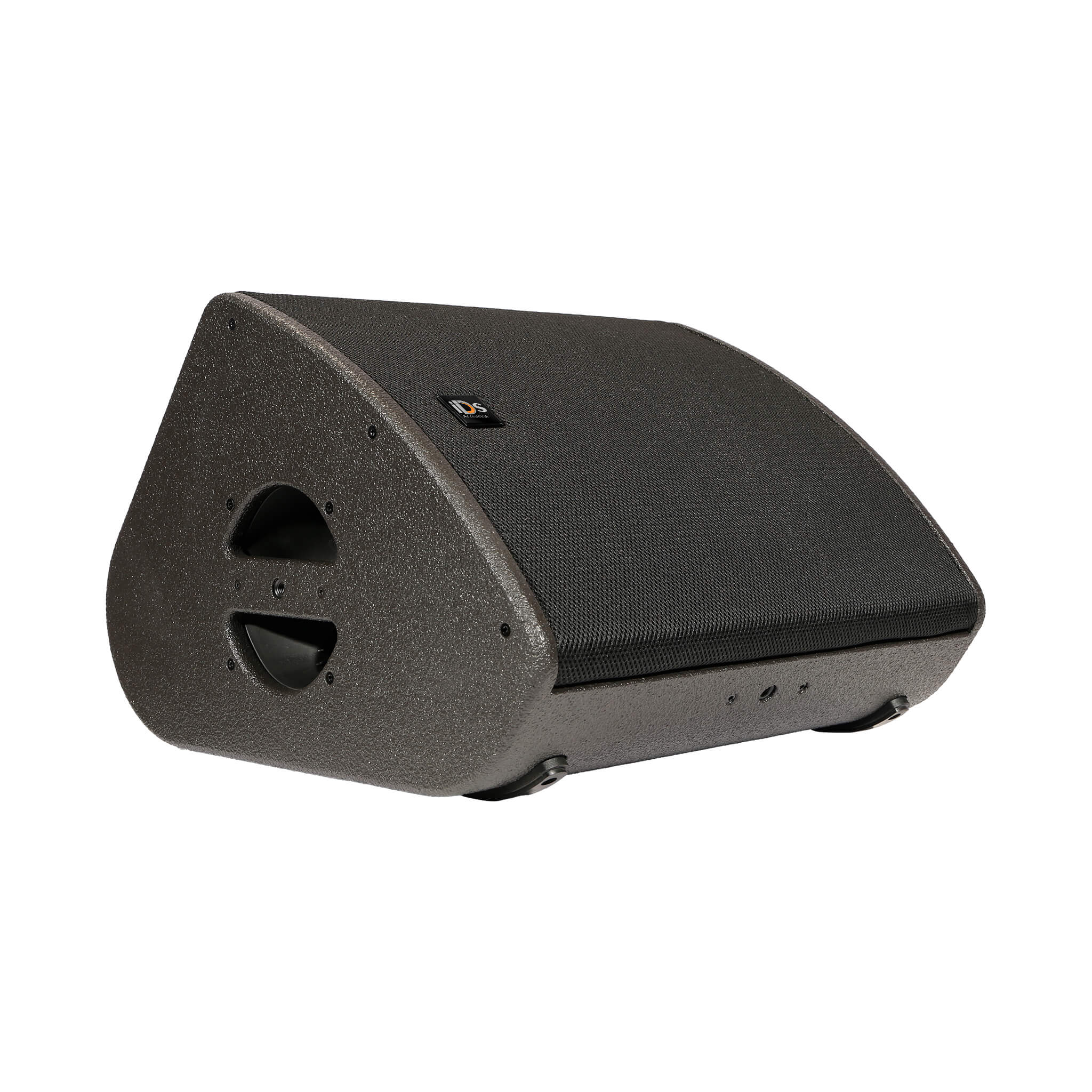

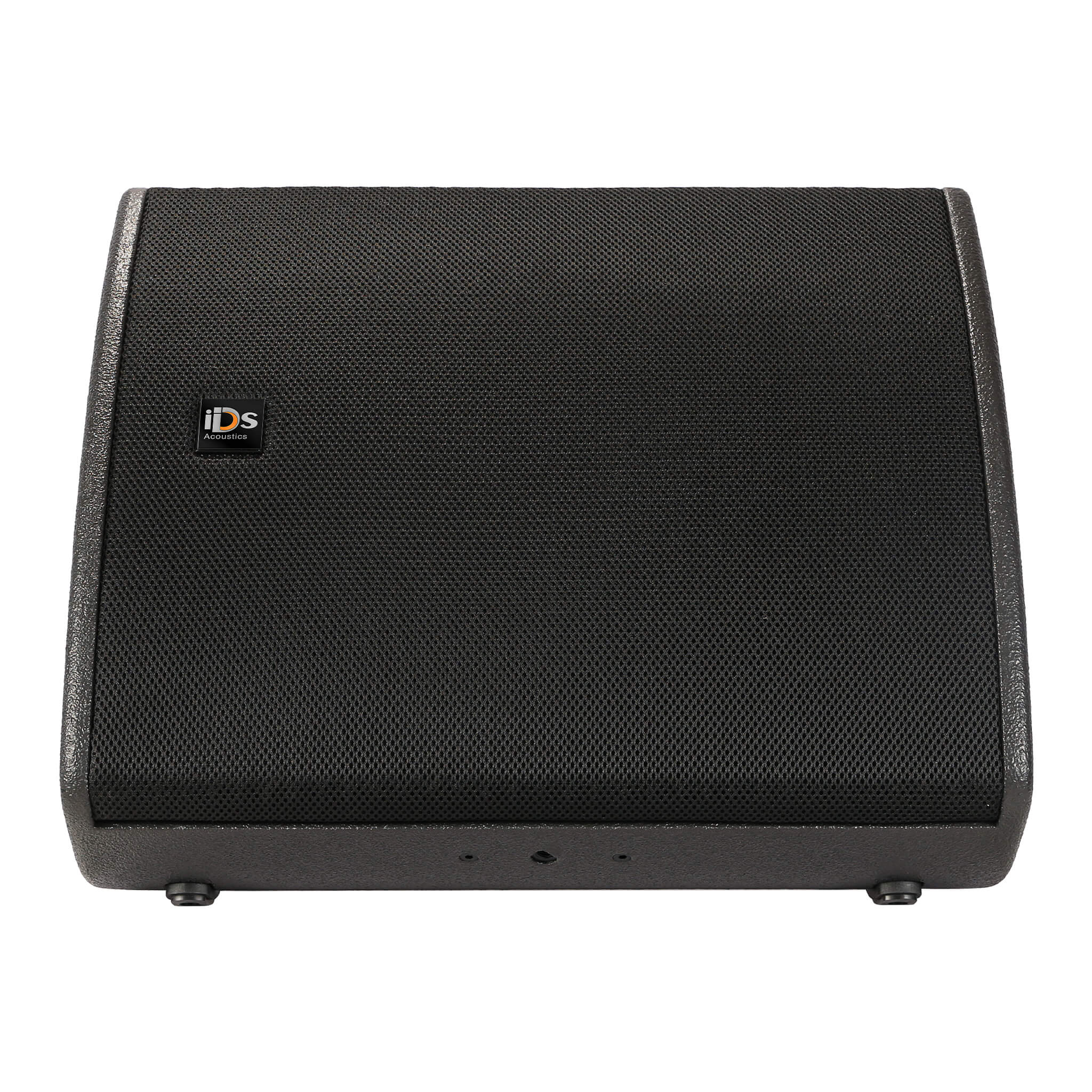

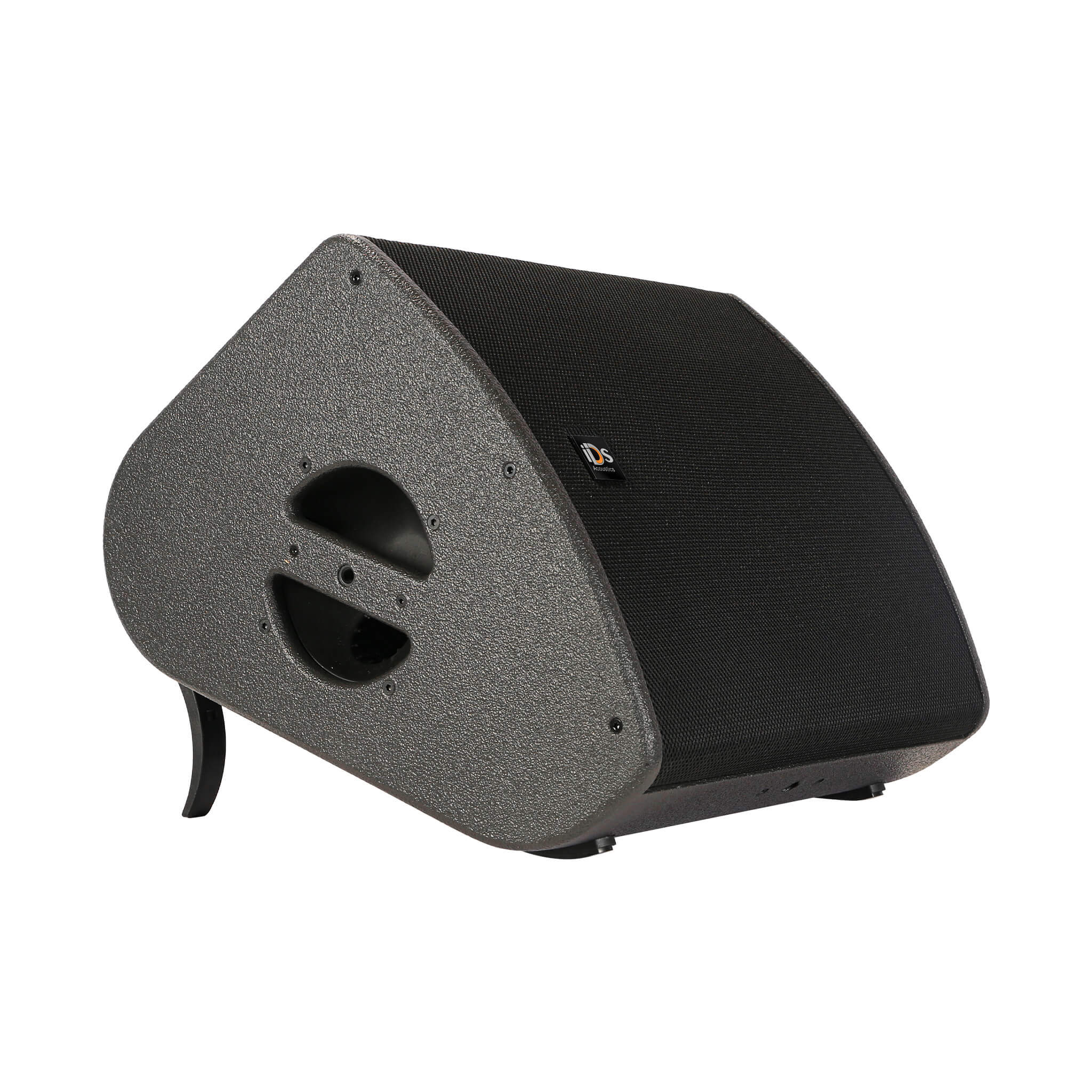

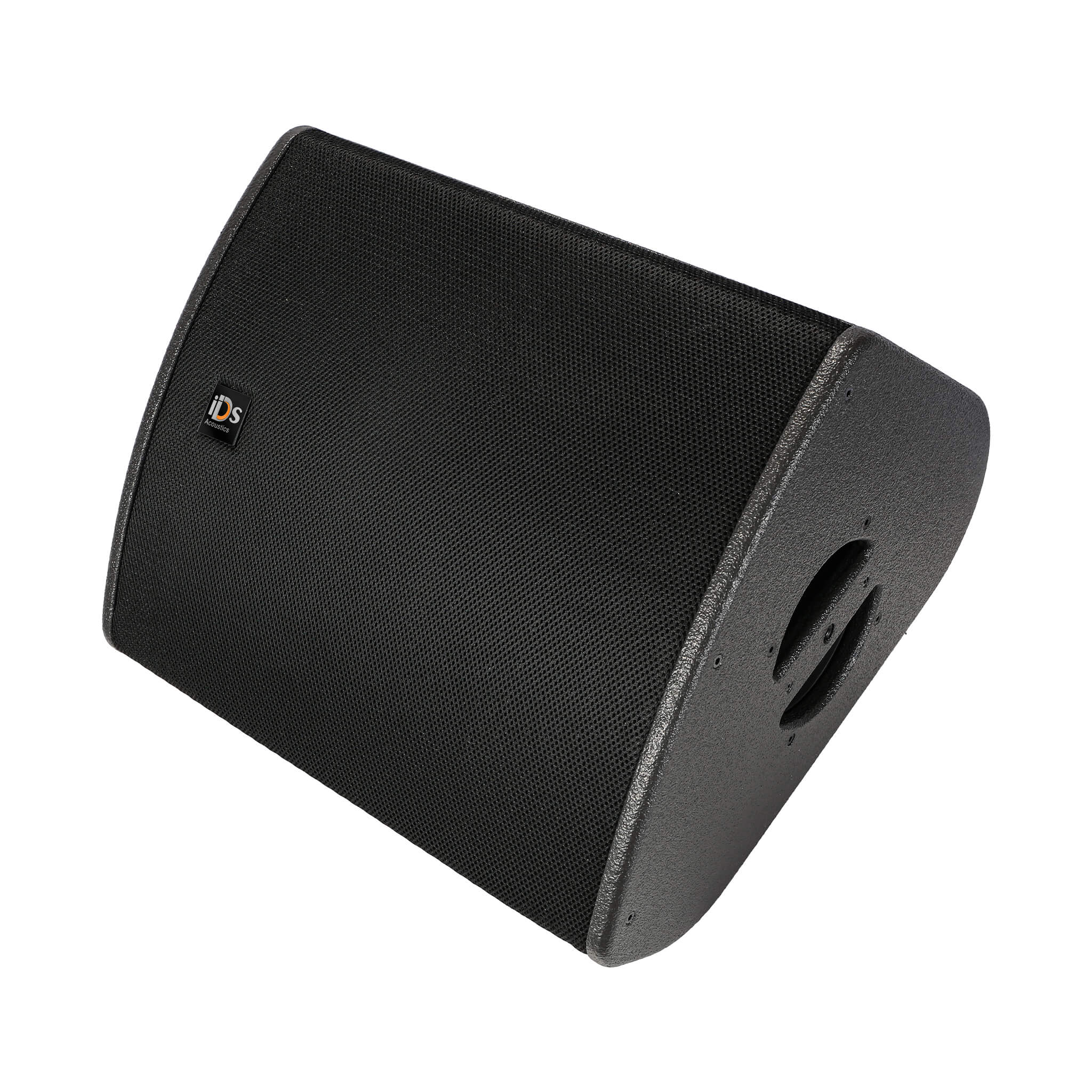

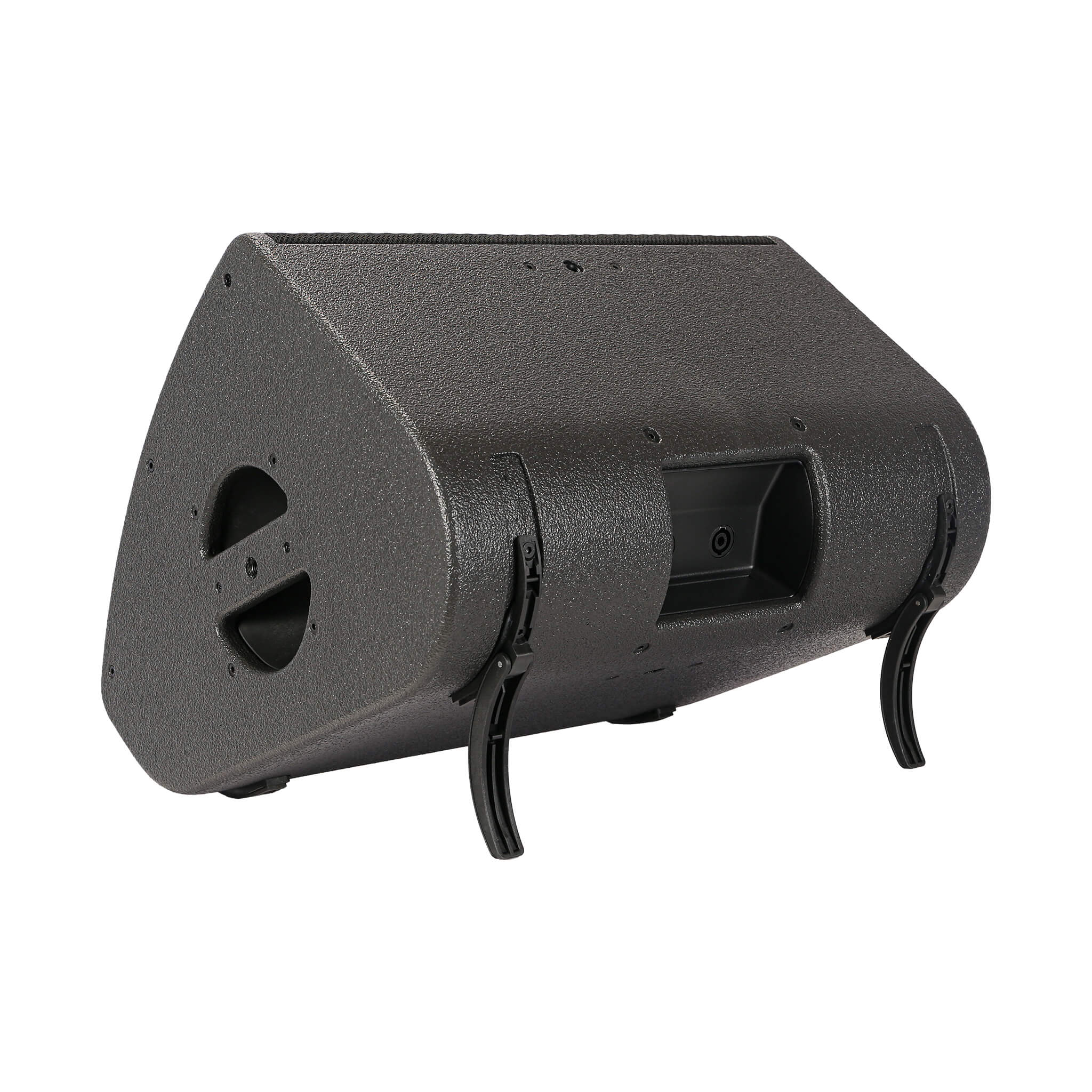

X12 Jack of All Trades 2-way Passive, 12"
Max SPL : 136 dB
Bandwidth : 59 Hz- 20 kHz
Transducers : LF:1x12" HF:1x 3'
Parameter Specifications
If You Need More Information About The Product, Please Contact Us.
You Can Contact Us Via Whatsapp.59 Hz - 20 kHz ([X12])
136 dB ([X12])
Vertical: 90° symmetric
horizontal: 60° symmetric
Without risers: 35°
with risers: 55°
LF:1x12"cone driver
HF: 1x 3"diaphragm compression driver, neodymium
Load bass-reflex, L-Vents, ellipsoidal waveguide
8 Ω
IN: 1x 4-point speakON
LINK:1 x 4-point speakON
2 x handles
DIN580-compatible M8 threaded insert
4 M10 threaded inserts
1 x 35 mm pole socket
430 mm (16.9 in)/496 mm (19.5 in) /375 mm (14.8 in)
20 kg / 44.1 lb
Premium grade Baltic beech and birch plywood
Steel with anti-corrosion coating acoustically neutral 3D fabric
Dark grey brown Pantone 426 C
pure white RAL 9010
custom RAL code on special order
IP43
