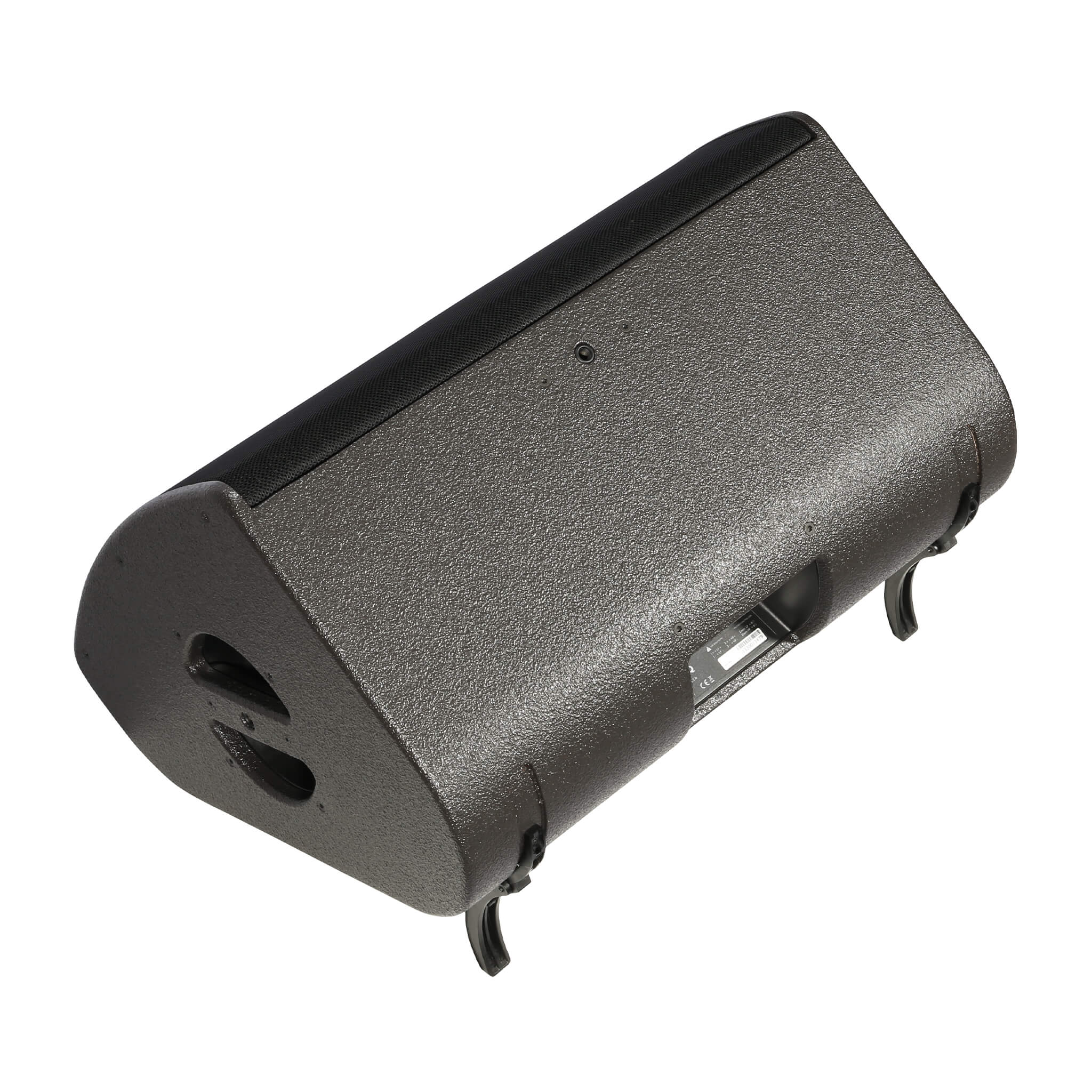

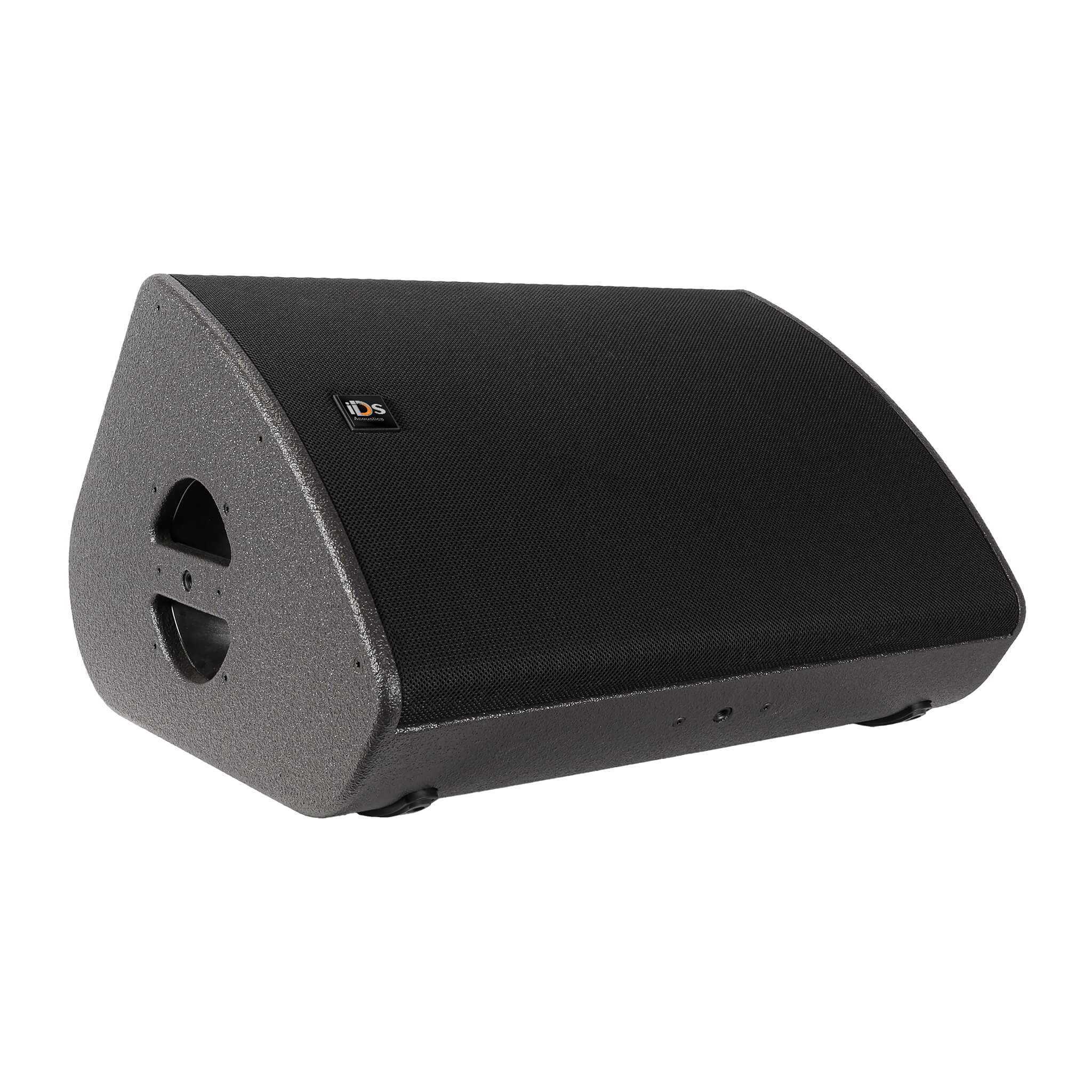

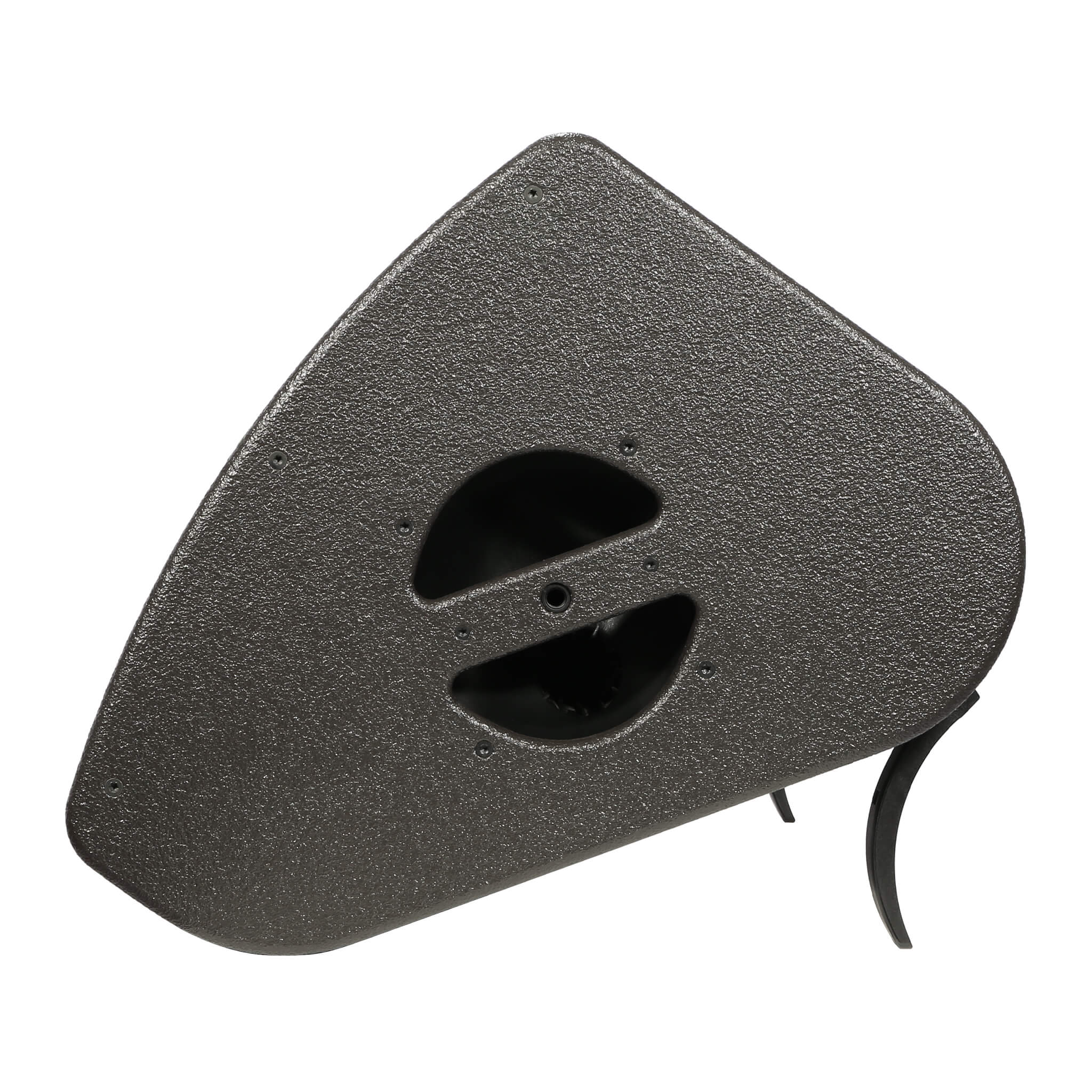

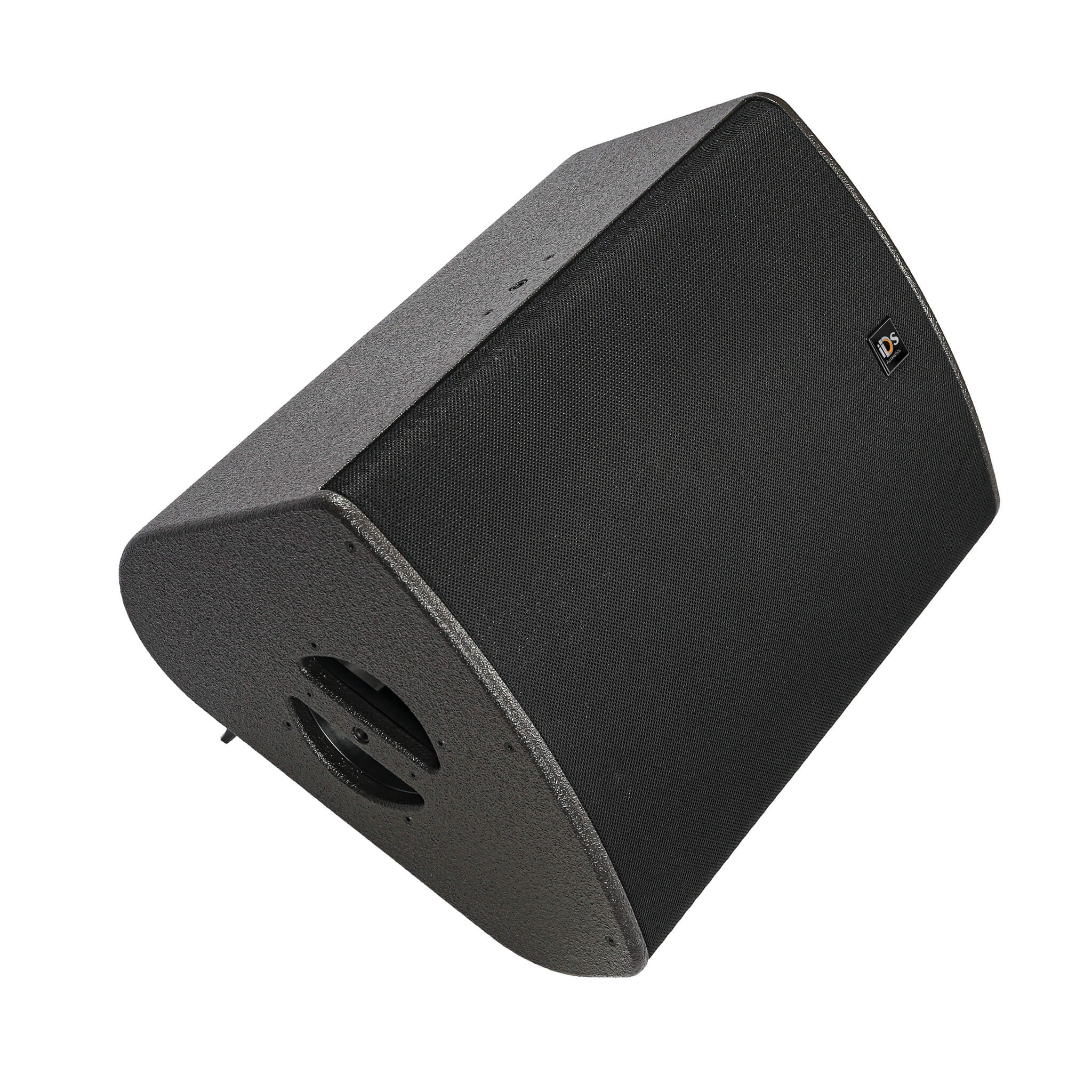

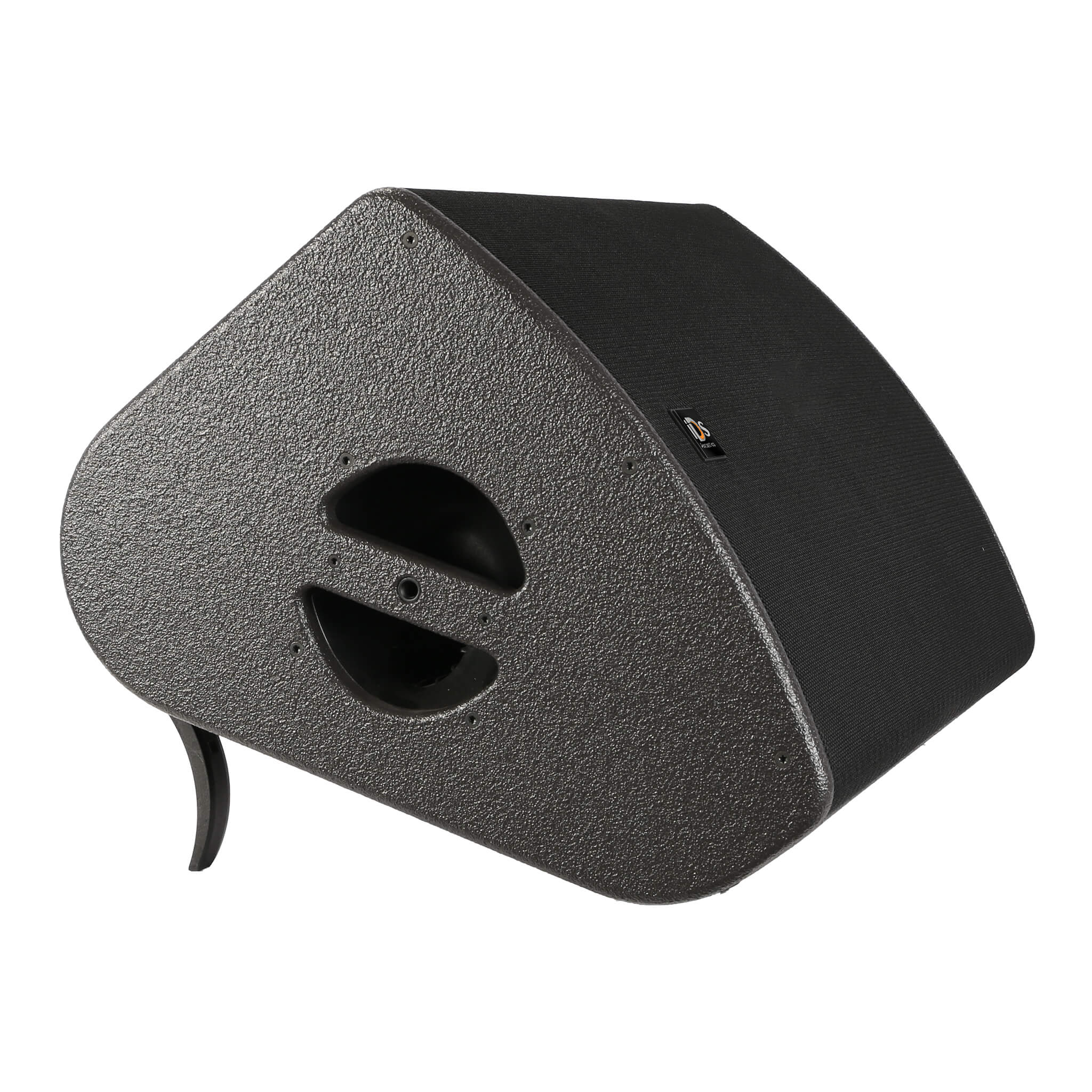

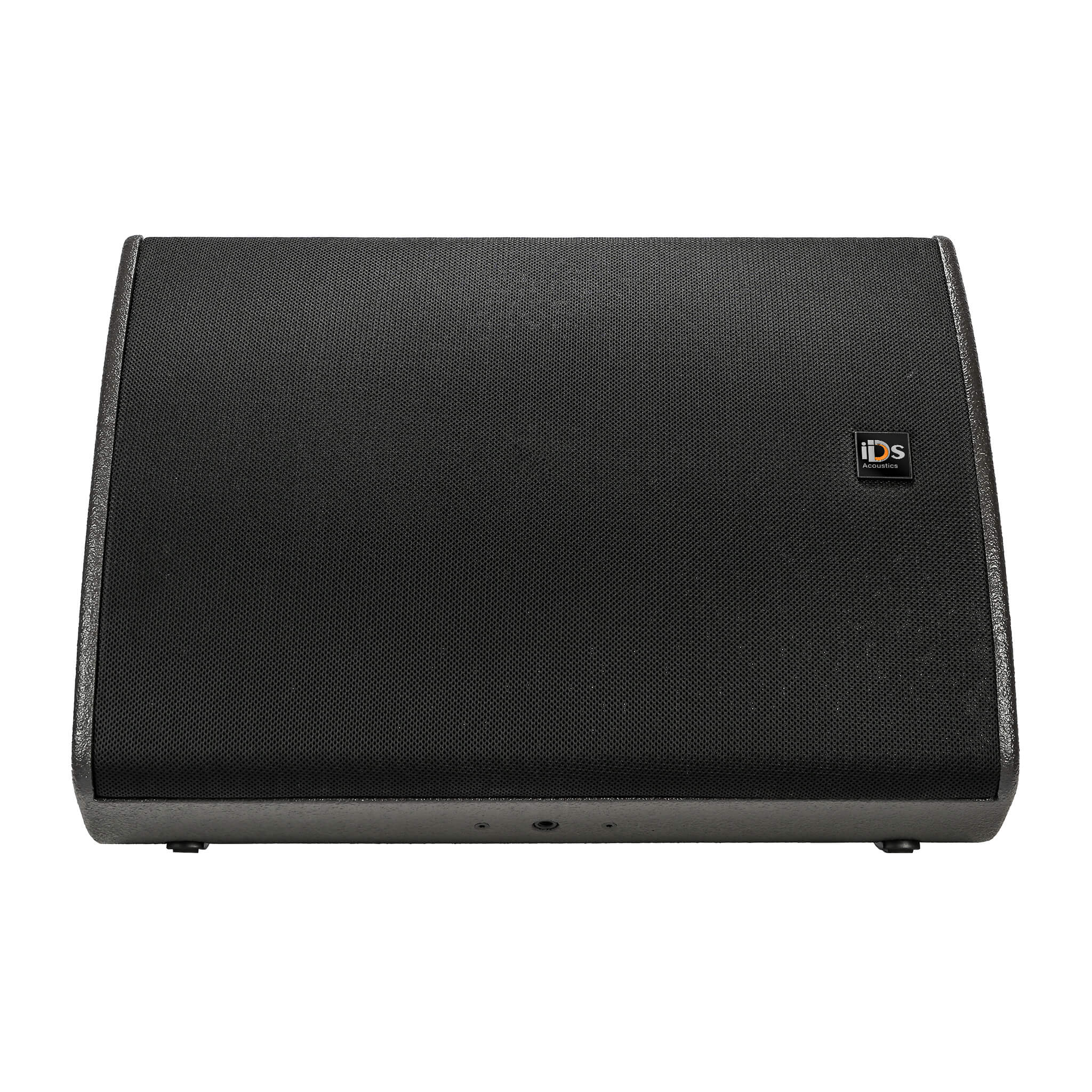

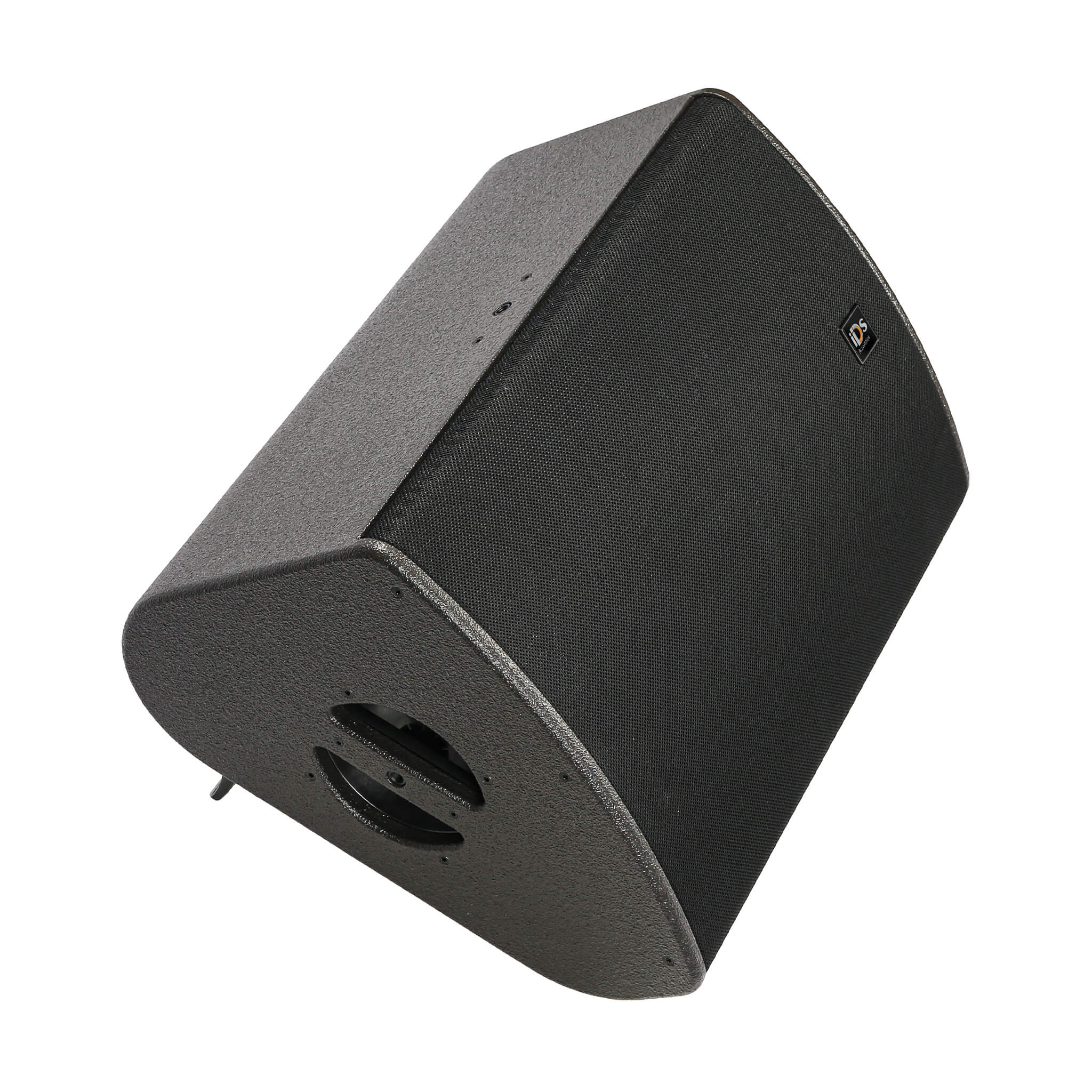

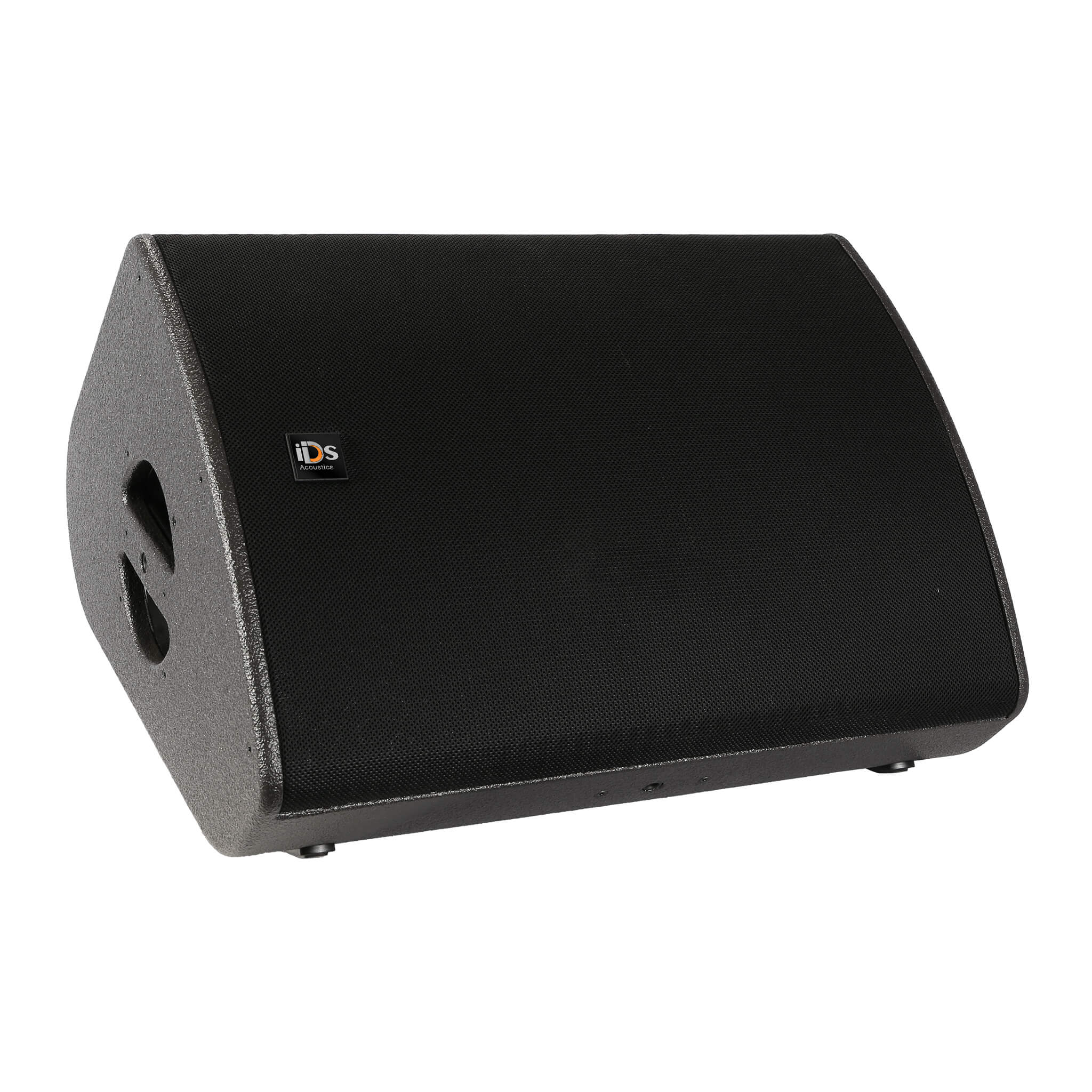

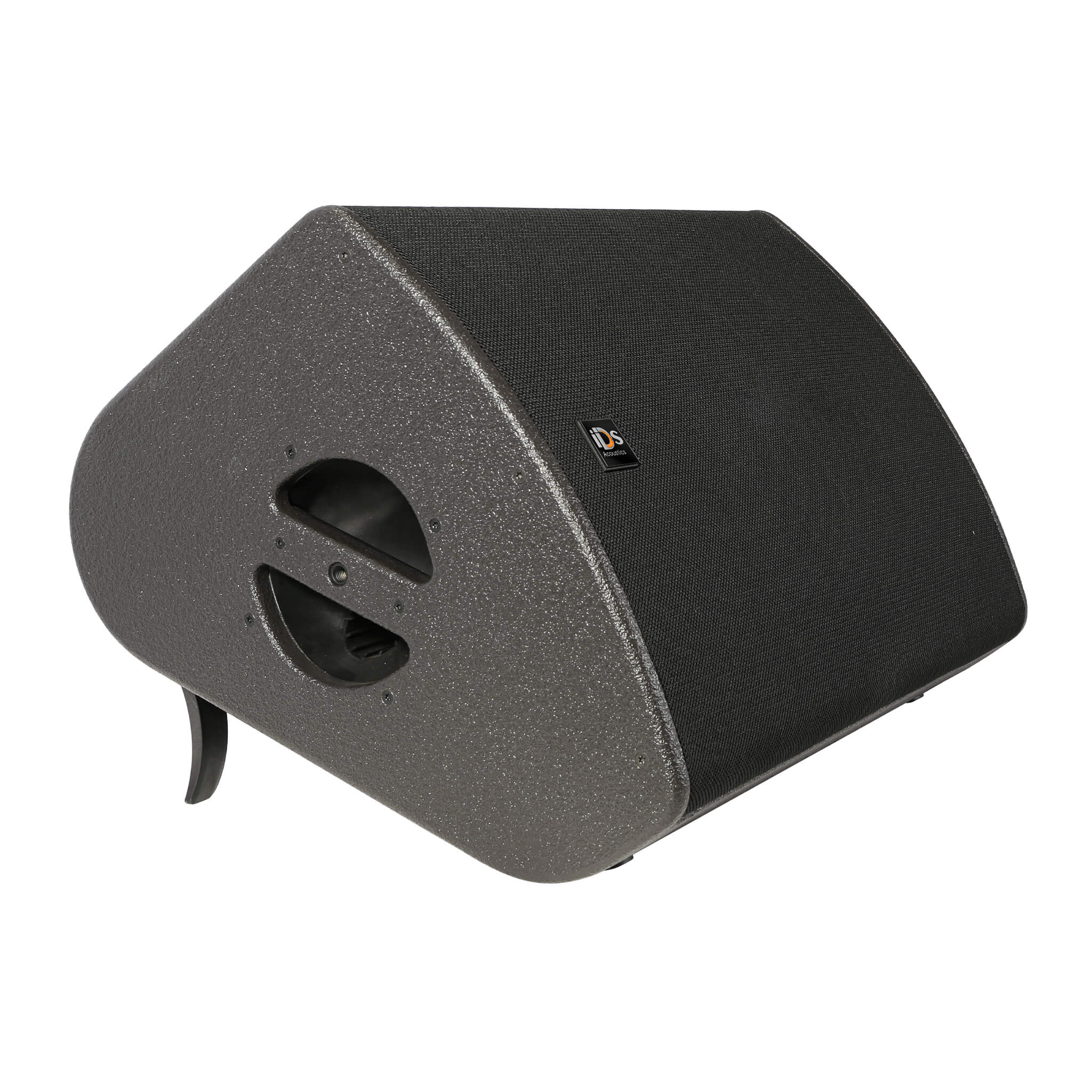

X15 Diva of the Stage 2-way Active, 15"
Max SPL: 138 dB
Bandwidth: 55 Hz-20 KHz
Transducers: LF:1x15" HF:1x3"
Weight: 21 kg / 46 lb
Directivity: H: 60° V: 40°
Parameter Specifications
If You Need More Information About The Product, Please Contact Us.
You Can Contact Us Via Whatsapp.55 Hz- 20 kHz ([X15])
138 dB ([X15])
Vertica: 60° symmetric
horizontal: 40° symmetric
Without risers: 35°
with risers: 55°
LF:1x 15" cone driver
HF: 1 x 3" diaphragm compression driver,neodymium
Load bass-reflex, L-Vents, ellipsoidal waveguide
LF:8 Ω
HF:8 Ω
IN: 1 x 4-point speakON
LINK: 1 x 4-point speakON
2 handles
1 DlN580-compatible M8 threaded insert
4 M10 threaded inserts
2 x 35 mm pole sockets
430 mm (16.9 in)/580 mm (22.8 in)/ 375 m (14.8 in)
21 kg / 46.3 lb
Premium grade Baltic beech and birch plywood
Steel with anti-corrosion coatingacoustically neutral 3D fabric
Dark grey brown Pantone 426 C
custom RAL code on special order
IP43
